However, before the solder paste can be used, it must not come straight out of the refrigerator.
The viscosity of the solder paste can change because solder particles with a high specific mass settle to the bottom. Therefore, reheating after cooling is necessary, with a minimum warm-up time of four hours.
Mixing the solder paste is very important here.
This can be done efficiently with a solder paste mixer.

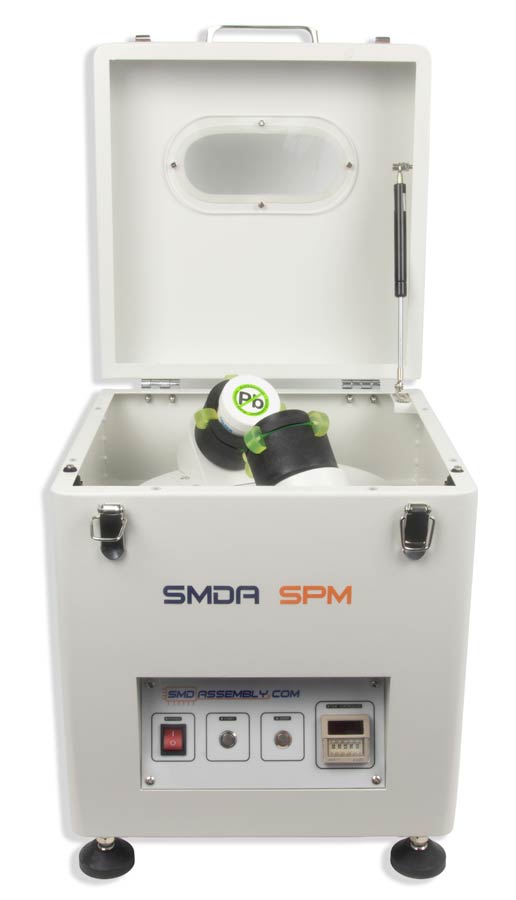

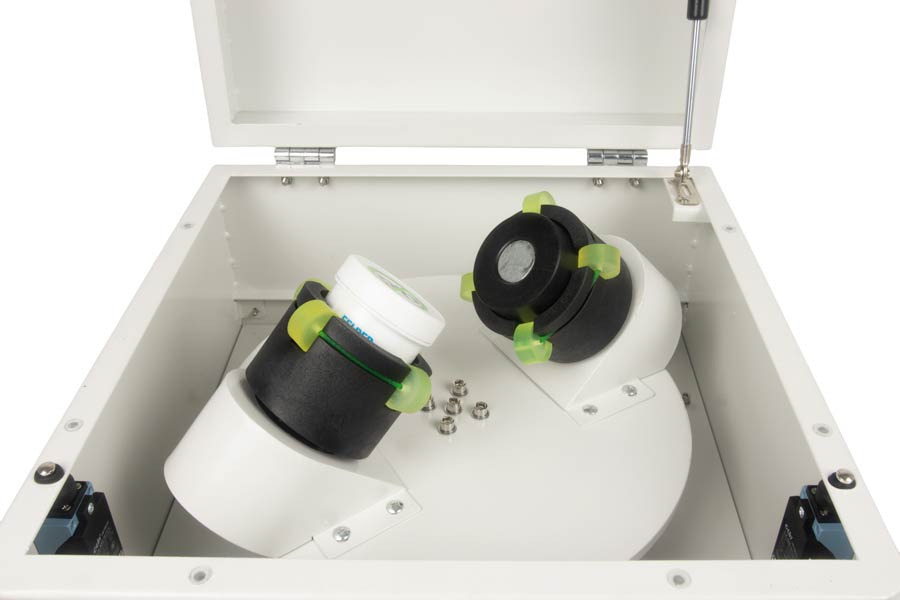

The pot of solder paste is placed in the machine, which rotates the pot in such a way that the paste is vented and mixed at the same time.
This ensures that the settled solder particles are evenly dispersed and the paste regains its original, consistent viscosity.
In addition, the mixer removes fine air bubbles that can cause solder ball scattering correctly preparing solder paste is therefore essential for reliable electronic connections.
Specifications
| Speed regulation | 200-1400 rpm |
| Max. Load | 1000gr (2 x 500gr pot) |
| Pot Size Diameter | 60 - 67mm |
| Time regulation | 0-99 min |

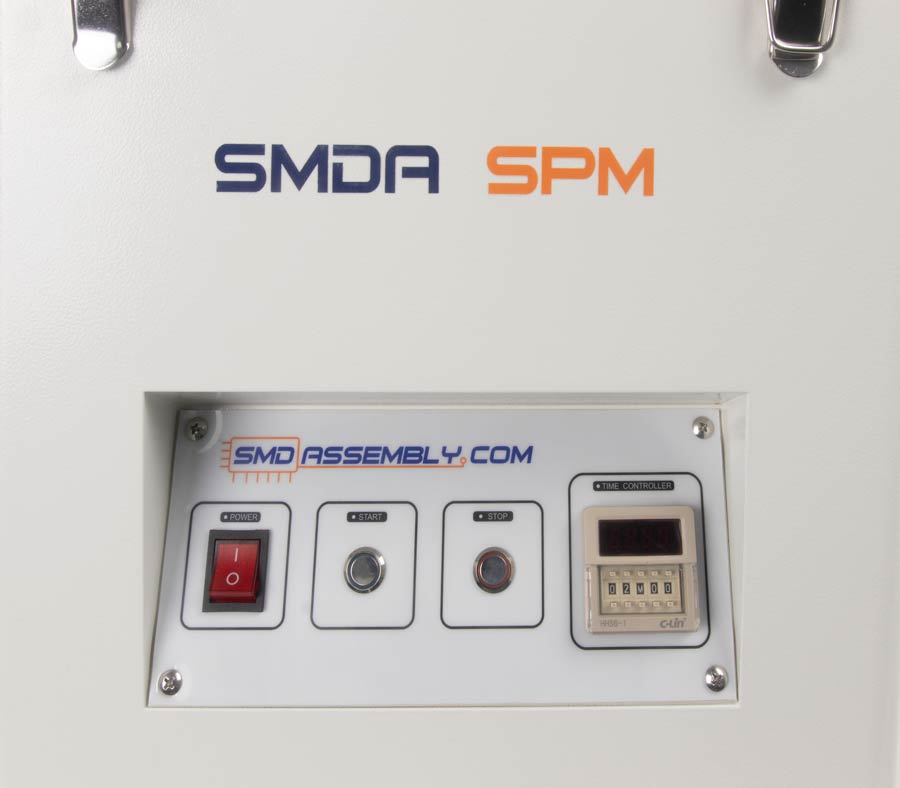

| Display | LED Digital Display |
| Power rating | 230V 50Hz/60Hz |
| Peak power | 60W |
| Dimensions | 400(L) × 400(W) × 500(H) mm |
| Weight | 45kg |
